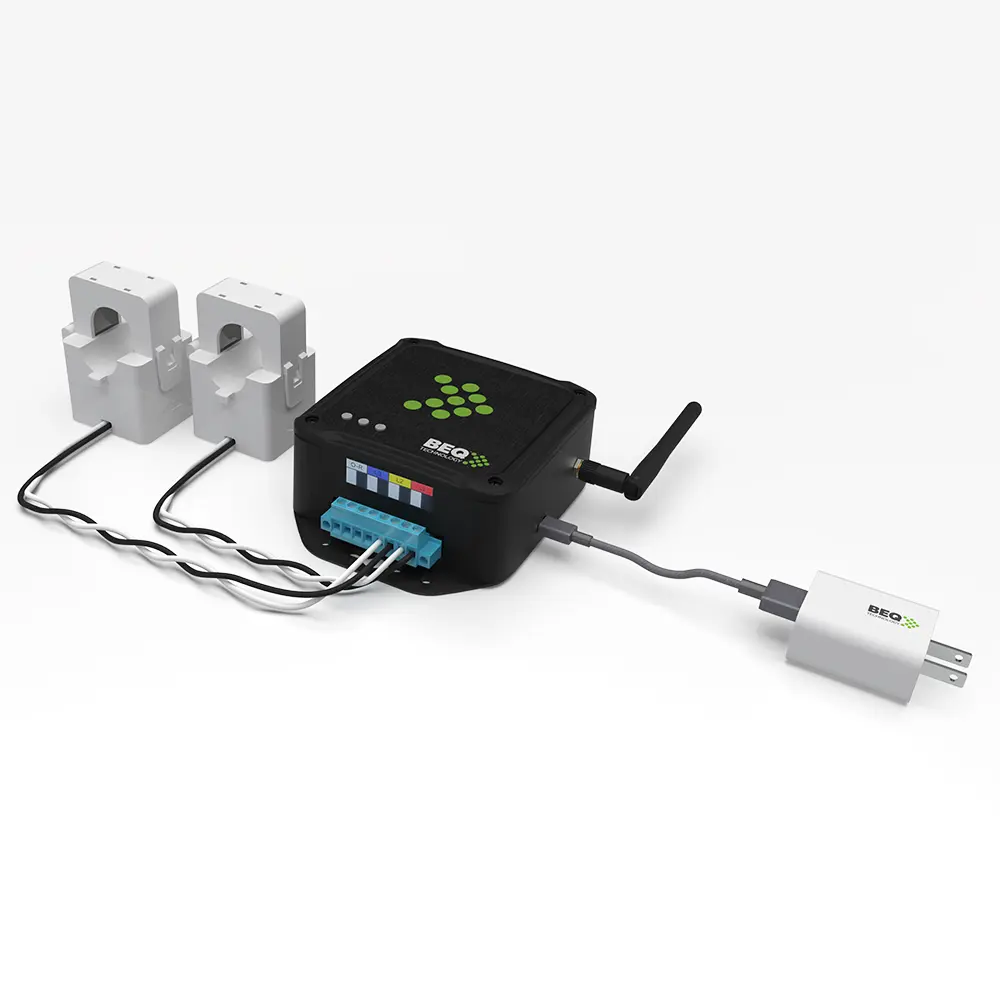

BEQ-Charge controller 400A
BEQ Technology's intelligent charge controller measures current consumption in real time and transmits the information to one or more EVOne+ intelligent charging stations electrically connected to the same panel. The charging stations can then adjust the charging current accordingly.
Functions
- Real-time current reading
- WiFi and Ethernet communication
- Web-based configuration
- Real-time diagnostic system
- Use with one or more EVOne smart charging station on a single panel
Specifications
- MODEL : BEQ-CT400AM
- 100-240VAC | 50/60Hz
- Charge controller:
- Clamp-on transformer
- Opening diameter : 24.2mm (0.95'')
- Dimensions : 69,6 mm x 43,5 mm (2,74’’ x 1,71’’)
- Current reading range: 0 - 400 A
- Operating temperature: - 15°C to 40°C
- Dimensions: 108mm x 852mm x 31.8mm (4.25'' x 3.354'' x 1.25'')
- Made by BEQ Technology
